General Series

General Series batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Telecom,Emergency Lighting,Alarm& Security system,etc.

Voltage covers: 2V,4V,6V, 8V,12V,24V Capacity: From 0.8Ah to 250Ah
Designed floating service life: 5 years for capacity 0.8Ah to 28Ah,10 years for capacity 33Ah to 250Ah @ 25 °C/77 °F

Model	Nominal Voltage (V)	Capacity (Ah)	Dimension(mm)				Weight Approx (Kg)	Terminal		PDF
Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	Weight Approx (Kg)	Type	Position	PDF
OP205	2	0.5	17.5	8.5	68	68	0.03	Tab
OP225	2	2.5	51	42	51	57	0.2	T1	A
OP250	2	5	46	25	100	106	0.3	T1	G
OP270	2	7	51	33	99	105	0.38	T1	A
OP2150	2	15	70	47	101	107	0.8	T1	A
OP403	4	0.3	40	26	20	26	0.04	P1	E
OP405	4	0.5	48	26	20	26	0.05	P1	E
OP410	4	1	65	34	22	28	0.08	P1	E
OP415	4	1.5	91	34	23	29	0.12	P1	E
OP420	4	2	75	51	22	28	0.17	P1	E
OP425	4	2.5	101	50	22	28	0.22	P1	E
OP435	4	3.5	90	34	59	65	0.44	T1	C
OP440	4	4	47	47	101	107	0.45	T1	D
OP445	4	4.5	47	47	101	107	0.50	T1	D
OP4100	4	10	102	44	95	101	1.05	T1	D
OP4200	4	20	150	43	154	165	2.22	T3	D
OP605	6	0.5	57	14	51	51	0.1	plug
OP610	6	1	51	42	51	57	0.25	T1	A
OP613	6	1.3	98	25	52	58	0.28	T1	C
OP623	6	2.3	43	37	76	76	0.34	T1	Tab
OP628	6	2.8	66	33	97	103	0.5	T1	A
OP632	6	3.2	125	33	60	66	0.61	T1	C
OP632(I)	6	3.2	66	33	120	125	0.61	T1	A
OP633	6	3.3	134	34	61	67	0.62	T1	C
OP635	6	3.5	134	34	61	67	0.65	T1	C
OP640	6	4	70	48	101	107	0.69	T1	A
OP640(I)	6	4	70	48	101	107	0.66	T1	A
OP640(II)	6	4	194	25	50	56	0.69	plug
OP640(III)	6	4	39	39	150	150	0.63	plug
OP645	6	4.5	70	48	101	107	0.75	T1	A
OP645(I)	6	4.5	70	48	101	107	0.72	T1	A
OP650	6	5	70	48	101	107	0.8	T1	A
OP650(I)	6	5	70	48	101	107	0.75	T1	A
OP650(II)	6	5	67	67	97	110	0.85	Spring
OP650(III)	6	5	170	35	70	76	0.88	T1	C
OP660	6	6	70	48	101	107	0.85	T1	A
OP660(I)	6	6	85	48	100	106	1.02	T1	A
OP670	6	7	151	34	94	100	1.06	T1/T2	C
OP675	6	7.5	151	34	94	100	1.15	T1/T2	C
OP675(I)	6	7.5	151	34	94	100	1.10	T1/T2	C
OP685	6	8.5	151	34	94	100	1.28	T1/T2	C
OP680	6	8	98	56	118	118	1.2	T1	B
OP690	6	9	151	34	94	100	1.3	T1/T2	C
OP690(I)	6	9	98	56	118	118	1.35	T1	B
OP6100	6	10	151	50	94	100	1.6	T1/T2	C
OP6120	6	12	151	50	94	100	1.75	T1/T2	C
OP6120(I)	6	12	151	50	94	100	1.65	T1/T2	C
OP6140	6	14	151	50	94	100	1.8	T1/T2	C
OP6140(I)	6	14	108	71	140	140	2.25	plug
OP6200	6	20	157	83	125	125	3.6	T3	C
OP832(I)	8	3.2	68	49	91	91	0.8	Tab
OP1208	12	0.8	96	25	62	62	0.34	plug
OP1212	12	1.2	98	43	52	58	0.5	T1	E
OP1213	12	1.3	98	43	52	58	0.55	T1	E
OP1220	12	2	178	34	60	66	0.83	T1	C
OP1220(I)	12	2	70	48	98	104	0.8	T1	C
OP1220(II)	12	2	151	20	90	90	0.68	Tab
OP1220(III)	12	2	144	24	65	65	0.58	Tab
OP1223	12	2.3	178	34	60	66	0.9	T1	C
OP1223(I)	12	2.3	182	24	61	61	0.71	T21
OP1226	12	2.6	70	48	98	104	0.85	T1	C
OP1226(I)	12	2.6	103	48	70	70	0.92	Tab
OP1228	12	2.8	66	66	97	103	1.02	T1	C
OP1228(I)	12	2.8	132	33	97	104	1.02	T1	E
OP1229	12	2.9	79	56	99	105	1.05	T1	D
OP1233	12	3.3	134	66	60	66	1.22	T1	E
OP1236	12	3.6	134	66	60	66	1.3	T1	E
OP1240	12	4	90	70	101	107	1.41	T1	C
OP1240(I)	12	4	90	70	101	107	1.35	T	C
OP1240(II)	12	4	194	47	70	75	1.43	T1	C
OP1245(II)	12	4.5	194	47	70	75	1.58	T1	C
OP1245	12	4.5	90	70	101	107	1.45	T1	C
OP1245(I)	12	4.5	90	70	101	107	1.42	T1	C
OP1250	12	5	90	70	101	107	1.6	T1	C
OP1250(I)	12	5	90	70	101	107	1.5	T1	C
OP1250(II)	12	5	90	70	101	107	1.65	T1	C
OP1250(III)	12	5	140	48	102	103	1.65	T1	C
OP1245(III)	12	4.5	151	51	94	100	1.6	T1	F
OP1250(IV)	12	5	151	51	94	100	1.7	T1	F
OP1265(I)	12	6.5	151	51	94	100	1.9	T1	F
OP1260	12	6	90	70	101	107	1.75	T1	C
OP1262	12	6.2	151	65	94	100	1.88	T1/T2	F
OP1265	12	6.5	151	65	94	100	1.92	T1/T2	F

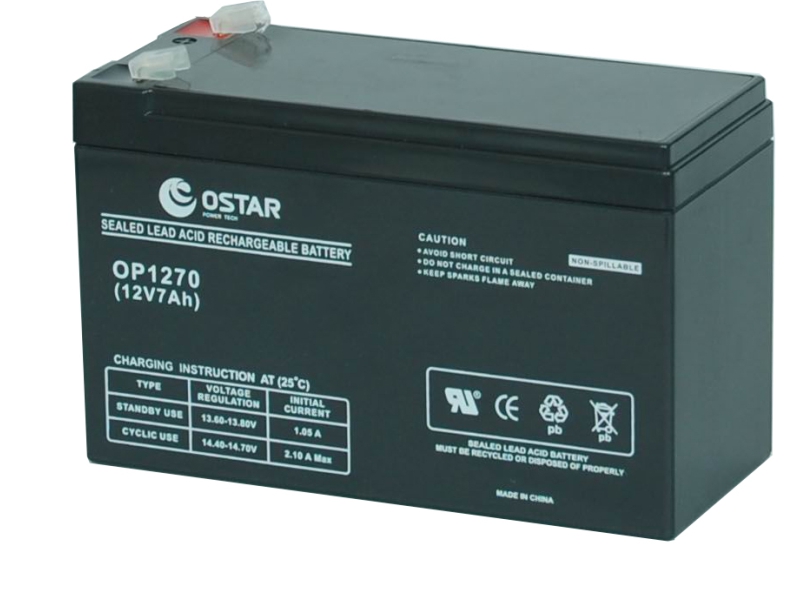

OP1270	12	7	151	65	94	100	2.05	T1/T2	F
OP1270(I)	12	7	151	65	94	100	2	T1/T2	F
OP1272	12	7.2	151	65	94	100	2.1	T1/T2	F
OP1275	12	7.5	151	65	94	100	2.15	T1/T2	F
OP1275(I)	12	7	151	65	94	100	2.1	T1/T2	F
OP1280	12	8	151	65	94	100	2.3	T1/T2	F
OP1280(I)	12	8	151	65	94	100	2.2	T1/T2	F
OP1285	12	8.5	151	65	94	100	2.4	T1/T2	F
OP1285(I)	12	8.5	151	65	94	100	2.3	T1/T2	F
OP1290	12	9	151	65	94	100	2.6	T1/T2	F
OP1290(I)	12	9	151	65	94	100	2.5	T1/T2	F
OP1290(II)	12	9	151	65	94	100	2.4	T1/T2	F
OP12100	12	10	151	65	111	116	2.9	T1/T2	F
OP12100(I)	12	10	151	65	111	116	2.75	T1/T2	F
OP12100(I)	12	10	151	98	94	100	3.1	T2	F
OP12120	12	12	151	98	95	100	3.5	T2	F
OP12120(I)	12	12	151	98	95	100	3.4	T2	F
OP12120(II)	12	12	151	98	95	100	3.3	T2	F
OP12140	12	14	151	98	95	100	3.8	T2	F
OP12150	12	14	151	98	95	100	4.1	T2	F
OP12150(I)	12	15	181	77	167	167	4.6	T3/T13	D
OP12170	12	17	181	77	167	167	4.8	T3/T13	D
OP12180	12	18	181	77	167	167	5.2	T3/T13	D
OP12180(I)	12	18	181	77	167	167	5.1	T3/T13	D
OP12200	12	20	181	77	167	167	5.6	T3/T13	D
OP12200(I)	12	20	181	77	167	167	5.4	T3/T13	D
OP12220	12	22	181	77	167	167	6.1	T3/T13	D
OP12220(I)	12	22	181	77	167	167	5.8	T3/T13	D
OP12240	12	24	175	166	125	125	7.4	T4/T13	D
OP12240(I)	12	24	175	166	125	125	7.2	T4/T13	D
OP12260	12	26	175	166	125	125	7.8	T4/T13	D
OP12260(I)	12	26	175	166	125	125	7.5	T4/T13	D
OP12280	12	28	175	166	125	125	8.6	T4/T13	D
OP12280(I)	12	28	175	166	125	125	8.3	T4/T13	D
OP12240H	12	24	165	125	175	182	7.6	T4/T13	D
OP12240H(I)	12	24	165	125	175	182	7.4	T4/T13	D
OP12260H	12	26	165	125	175	182	8	T4/T13	D
OP12260H(I)	12	26	165	125	175	182	7.6	T4/T13	D
OP12280H	12	28	165	125	175	182	8.8	T4/T13	D
OP12280H(I)	12	28	165	125	175	182	8.5	T4/T13	D
OP1870	18	7	151	102	100	100	3.5	plug
OP1890	18	9	151	102	100	100	4	plug
OP2435	24	3.5	181	73	70	70	2.6	plug
OP2445	24	4.5	206	77	74	74	3	plug
OP2450	24	5	140	90	103	109	3.1	plug
OP24100	24	10	301	65	102	102	5.6	plug
OP24140	24	14	300	98	103	103	8	plug
OP24200	24	20	170	146	185	185	11.5	plug
OP36120	36	12	190	150	115	115	10	plug

Model	Nominal Voltage (V)	Capacity (Ah)	Dimension(mm)				Weight Approx (Kg)	Terminal		PDF
Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	Weight Approx (Kg)	Type	Position	PDF
OP6360	6	36	162	88	164	170	5.5	T2	B
OP6420	6	42	162	88	164	170	6.2	T2	B
OP61000	6	100	194	170	205	210	15	T16	A
OP61000(I)	6	100	281	128	189	204	15.5	T19	B
OP61500	6	150	260	180	245	250	23.5	T19	B
OP61800	6	180	260	180	245	250	28	T19	B
OP61800(I)	6	180	307	169	220	225	27.5	T19	B
OP62000	6	200	321	176	226	230	30.5	T19	A
OP62000(I)	6	200	260	180	245	250	30.5	T19	B
OP62250	6	225	323	178	224	228	32.5	T19	A
OP62250(I)	6	225	243	188	275	275	33	T19	B
OP63000	6	300	295	178	345	350	46.5	T19	A
OP81800	8	180	260	182	295	298	36.5	T11	C
OP12330	12	33	195	130	155	179	9.7	T8/T16	C
OP12350	12	35	195	130	155	179	10.5	T8/T16	C
OP12400	12	40	197	165	170	170	12.5	T9/T16	D
OP12380	12	38	197	165	170	170	12	T9/T16	D
OP12450	12	45	197	165	170	170	13.8	T9/T16	D
OP12500	12	50	230	138	208	230	16	T9/T16	C
OP12550	12	55	230	138	208	230	17	T9/T16	C
OP12600	12	60	260	168	211	215	19	T9/T16	C
OP12600(I)	12	60	350	166	179	179	19.5	T9/T16	C
OP12650	12	65	350	166	179	179	20.5	T9/T16	C
OP12700	12	70	260	168	211	215	21.5	T9/T16	C
OP12700(I)	12	70	350	166	179	179	21	T9/T16	C
OP12750	12	75	260	168	211	215	22	T9/T16	C
OP12750(I)	12	75	350	166	179	179	21.5	T9/T16	C
OP12800	12	80	260	168	211	215	22.5	T9/T16	C
OP12800(II)	12	80	350	166	179	179	22	T9/T16	C
OP12850	12	85	260	168	211	215	23.5	T9/T16	C
OP12900	12	90	306	169	211	215	27	T10/T16	C
OP121000	12	100	330	171	214	220	29.5	T10/T19	C
OP121000(I)	12	100	330	171	214	220	28	T10/T19	C
OP121000(II)	12	100	330	171	214	220	31	T10/T19	C
OP121100	12	110	330	171	214	220	32	T10/T19	C
OP121000(II)	12	100	409	176	225	233	30.5	T10/T19	C
OP121200	12	120	409	176	225	233	35	T11/T19	C
OP121200(I)	12	120	409	176	225	233	33	T11/T19	C
OP121200(II)	12	120	407	174	209	233	35	T11/T19	C
OP121340	12	134	342	172	280	285	39.5	T11/T19	C
OP121500(I)	12	150	342	172	280	285	45.5	T11/T19	C
OP121500	12	150	485	172	240	240	43	T12/T19	C
OP121500(II )	12	150	485	172	240	240	41.5	T12/T19	C
OP121600	12	160	530	207	214	218	49	T11/T19	E
OP121800	12	180	530	207	214	218	53	T11/T19	E
OP122000	12	200	522	238	218	221	59.5	T11/T19	E
OP12180(I)	12	180	522	238	218	221	53	T11/T19	E
OP122000(I)	12	200	522	238	218	221	61	T11/T19	E
OP122200	12	220	522	238	218	221	63	T11/T19	E
OP122300	12	230	521	269	220	223	67	T11/T19	E
OP122500	12	250	521	269	220	223	72	T11/T19	E
OP122500(I)	12	250	521	269	220	223	69	T11/T19	E

Features

● Excellent starting performance
● Long cycle life
● Long discharge duration
● Excellent fast charge performance
● High consistency
● Extra durability and deep cycle ability for heavy demand applications

Applications

● Electric bicycle
● Electric powered vehicles
● Wheelchairs
● Electric toys
● Electric scooter
● Golf car & Tourism car
● Solar & Wind power system
● Electric Power Supply(EPS)
