LiFePO4 Battery Series
This series of Lithium batteries developed for replacement of lead acid battery,mainly be utilized of ESS(Energy Storage Systems) solution , Using high-rate LiFePO4 (LFP) cells and BMS system, and integrating a remote real-time monitoring system and an intelligent management module, to ensure safe and reliable system operations in the whole lifecycle. Its smart management structure can accurately monitor the status of each component in the system to ensure stable system performance and safety of users.Comparing with standard lead-acid batteries, it provides up to 15 times the cycle life (3500 to 4000 cycles @0.5C,80% DOD 25+/-5°C) and design life 20 years, thereby help to minimize replacement costs and reduce total cost of ownership.
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimensions（mm） | Weight Approx (Kg) | Terminal | Max. | ||||
| Length | Width | Height | Total Height | Type | Position | Current(A) | ||||
| LFP1206(I) | 12.8 | 6 | 90 | 70 | 101 | 107 | 0.7 | M5 | C | 10 |
| LFP1206 | 12.8 | 6 | 151 | 65 | 94 | 100 | 0.8 | T2 | F | 10 |
| LFP1207 | 12.8 | 7 | 151 | 65 | 94 | 100 | 1 | T2 | F | 10 |
| LFP1210 | 12.8 | 10 | 151 | 65 | 94 | 100 | 1.1 | T2 | F | 10 |
| LFP1212 | 12.8 | 12 | 151 | 98 | 95 | 101 | 1.5 | T2 | F | 12 |
| LFP1215 | 12.8 | 15 | 151 | 98 | 95 | 101 | 1.6 | T2 | F | 15 |
| LFP1218 | 12.8 | 18 | 181 | 77 | 167 | 167 | 2.2 | T3 | D | 20 |
| LFP1220 | 12.8 | 20 | 181 | 77 | 167 | 167 | 2.3 | T3 | D | 20 |
| LFP1224 | 12.8 | 24 | 181 | 77 | 167 | 167 | 2.7 | T3 | D | 24 |
| LFP1230 | 12.8 | 30 | 177 | 167 | 125 | 125 | 4 | T13 | D | 30 |
| LFP1236 | 12.8 | 36 | 198 | 166 | 169 | 169 | 4.6 | T16 | D | 36 |
| LFP1240 | 12.8 | 40 | 198 | 166 | 169 | 169 | 4.8 | T16 | D | 40 |
| LFP1250 | 12.8 | 50 | 229 | 138 | 208 | 212 | 5.9 | T16 | C | 50 |
| LFP1260 | 12.8 | 60 | 229 | 138 | 208 | 212 | 6 | T16 | C | 60 |
| LFP1270 | 12.8 | 70 | 260 | 168 | 211 | 215 | 7 | T16 | C | 70 |
| LFP1280 | 12.8 | 80 | 260 | 168 | 211 | 215 | 8 | T16 | C | 80 |
| LFP12100 | 12.8 | 100 | 330 | 173 | 212 | 218 | 10 | T19 | C | 100 |
| LFP12150 | 12.8 | 150 | 330 | 173 | 212 | 218 | 14 | T19 | C | 150 |

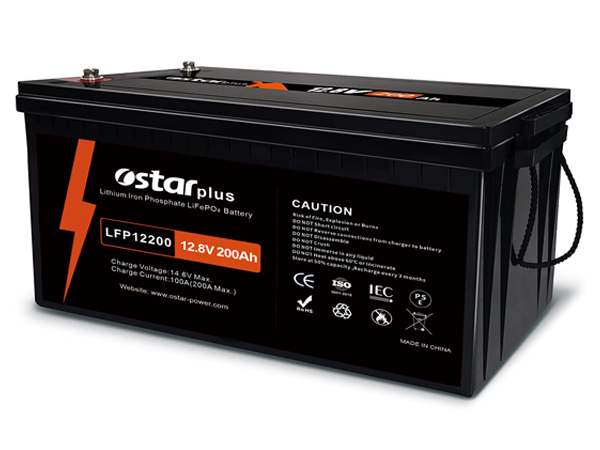

| LFP12200 | 12.8 | 200 | 522 | 240 | 218 | 222 | 20 | T19 | E | 200 |
| LFP12300 | 12.8 | 300 | 521 | 269 | 220 | 224 | 26 | T19 | E | 300 |
| LFP12400 | 12.8 | 400 | 521 | 269 | 220 | 224 | 38 | T19 | E | 300 |
| LFP2450 | 25.6 | 50 | 330 | 173 | 212 | 218 | 11.8 | M8 | C | 50 |
| LFP24100 | 25.6 | 100 | 522 | 240 | 218 | 222 | 20 | M8 | E | 100 |
| LFP24120 | 25.6 | 120 | 522 | 240 | 218 | 222 | 25 | M8 | E | 100 |
| LFP24150 | 25.6 | 150 | 522 | 240 | 218 | 222 | 28.5 | M8 | E | 150 |
| LFP24200 | 25.6 | 200 | 522 | 240 | 218 | 222 | 39 | M8 | E | 200 |
| LFP4850 | 51.2 | 50 | 522 | 240 | 218 | 222 | 21 | M8 | E | 50 |
| LFP48100 | 51.2 | 100 | 521 | 269 | 220 | 224 | 38 | M8 | E | 100 |
Features
● Exceptional deep discharge recovery performance ,
● Long design life,Low self discharge characteristic (per month): ≤2%, no memory effect.
● Light weight: about 40% of the weight of similar standard lead-acid batteries.
● Wide operating temperature range: -20°C~60°C
● Multiple automatic protection function through intelligent BMS system,Avoid overcharge, overdischarge, short circuit.
● High power: Provides twice the power of standard lead-acid batteries, and has a high discharge rate while maintaining high energy content.
● Excellent fast charging performance, after fast charging with 1C current, the capacity can reach 95% of rate capacity in one hour.
● Superior safety: Lithium iron phosphate chemical formula eliminates explosion or fire caused by high load, overcharging or short circuit.
● Environment-friendly , not containing heavy metals.
● No gas in charging and discharging, the current efficiency is close to 100%.
● Electric vehicles, electric mobility
● RV’s, Boats, AGV’s and off-grid
● Electric power stations.
● Communication base station ,UPS
● Solar energy and wind power storage system,
● All fields using VRLA batteries
