High Rate Series

High Rate Series

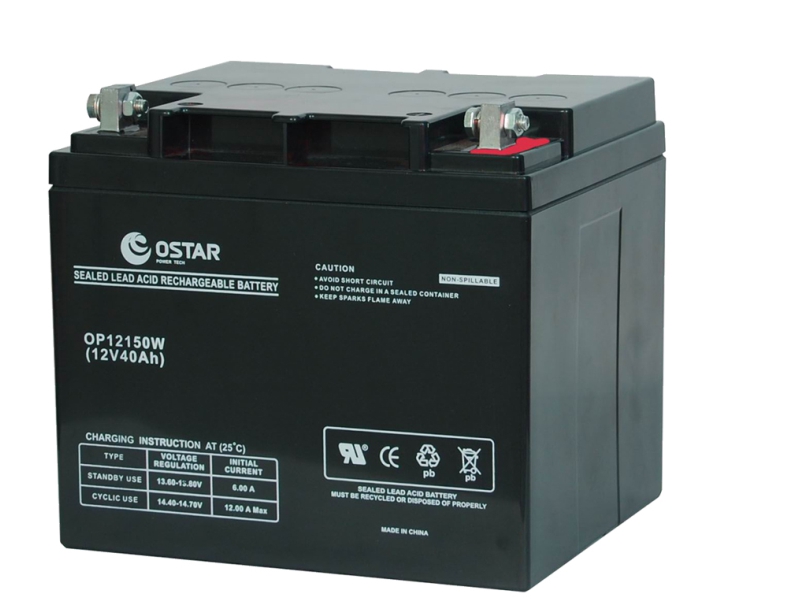

High Rate Series batteries have been developed with high efficiency active materials to stimulate inside the battery with higher power output when the battery is discharged to a extent level of discharge, Along with high-density structure design for relatively smaller inner resistance to improve the performances for high rate discharging.

Voltage covers: 6V,12V     Capacity: From 0.8Ah to 250Ah
Designed floating service life: 5 years for capacity 4Ah to 28Ah,10 years for capacity 33Ah to 200Ah @ 25 °C/77 °F

General Specifications



Model
Nominal
Voltage
(V)
Capacity
(Ah)
Dimension(mm)
Weight
Approx
(Kg)
Terminal
PDF
Length
Width
Height
Total
Height
Type
Position
OP621W
6
5
70
48
101
106
0.85
T1
A
OP634W
6
9
151
34
94
100
1.4
T1/T2
C
OP651W
6
12
151
50
94
100
2
T1/T2
C
OP6750W
6
200
323
178
224
227
32.5
T19
A
OP1221W
12
5
90
70
101
106
1.7
T1
C
OP1224W
12
6
151
51
94
100
2
T1/T2
F
OP1224W(I)
12
5
140
48
102
104
1.9
T1
C
OP1234W
12
9
151
65
94
100
2.65
T1/T2
F
OP1251W
12
12
151
98
94
100
4.1
T2
F
OP1280W
12
20
181
77
167
167
6
T13
D
OP12100W
12
26
175
166
125
125
8.8
T4/T13
D
OP12110W
12
28
166
125
175
182
9.5
T4/T13
D
OP12140W
12
33
195
130
155
180
11.5
T8/T16
C
OP12160W
12
45
195
165
170
170
14.5
T9/T16
D
OP12200W
12
55
230
138
208
230
17.5
T9/T16
C
OP12240W
12
65
350
166
179
179
21.5
T9/T16
C
OP12280W
12
80
260
169
211
233
25.5
T9/T16
C
OP12330W
12
90
307
169
211
233
29
T10/T16
C
OP12390W
12
100
330
171
214
220
32.5
T10/T19
C
OP12430W
12
110
330
171
214
220
34
T10/T19
C
OP12450W
12
120
409
176
225
225
38
T11/T19
C
OP12520W
12
140
342
172
280
285
46
T19
C
OP12550W
12
150
485
172
240
240
47
T12/T19
C
OP12750W
12
200
522
238
218
238
65
T11/T19
E




Features
● Better discharge characteristic than normal VRLA batteries
● High Power and high energy density
● High charge acceptance
● High consistency
● Low internal resistance
● Low self discharge characteristic



Applications
● UPS & Computer
● Engines starting
● Electric Power System(EPS)
● Power tools
● Portable power supply
